Aufnahmebolzen mit Kugelansatz Form A

Artikelnummer: 03107

Aufnahmebolzen mit Kugelansatz Form A

Produktinfo

Material
Tool steel or stainless steel 1.4305

Yta
Steel hardened and ground, stainless steel ground and kolsterised

Notera
Straight Bolts with ball end facilitate mounting operations as they are specifically designed for this process. The tendency to jam parts, also known as "drawer effect", is caused by forces not effective in the bolt axis or by parts being mounted at a slanted angle. This tendency is minimized by the ball end and the ball incline (see also mounting illustration 03108 Form B).

Order No.MaterialAToleranceABToleranceBCToleranceCDEFHJApprox. weight kgG
03107-08steel8n68g68-0,01/-0,0510826R 20,006M3
03107-10steel10n610g610-0,01/-0,0513102,56R 2,50,012M3
03107-12steel12n612g612-0,01/-0,05151238R 30,021M4
03107-16steel16n616g616-0,01/-0,052016410R 40,051M5
03107-20steel20n620g620-0,01/-0,052520510R 50,101M5
03107-25steel25n625g625-0,01/-0,052525610R 60,176M5
03107-30steel30n630g630-0,01/-0,053030812R 80,307M6
03107-40steel40n640g640-0,01/-0,0540401012R 100,729M6
03107-50steel50n650g650-0,01/-0,0550501212R 121,422M6
03107-508stainless steel8n68g68-0,01/-0,0510826R 20,006M3
03107-510stainless steel10n610g610-0,01/-0,0513102,56R 2,50,012M3
03107-512stainless steel12n612g612-0,01/-0,05151238R 30,021M4
03107-516stainless steel16n616g616-0,01/-0,052016410R 40,051M5
03107-520stainless steel20n620g620-0,01/-0,052520510R 50,101M5

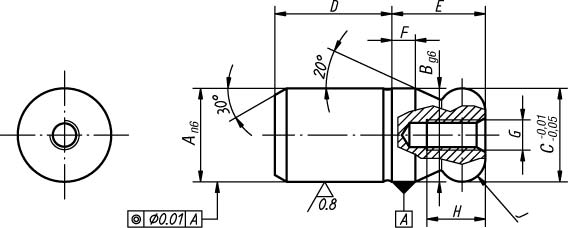

Konstruktion
