Verschlussriegel
Artikelnummer: 03102
Produktinfo
Material
Housing in die cast zinc;
grip, support and slot fixation thermoplastic PA;
bolt in stainless steel
Yta
Housing silver painted;
grip, support and slot fixation black;
bolt natural finish
Notera
Spring-loaded closing pin.
Included in delivery are:
- for assembly on flat surfaces, 2 bases.
- for assembly on profiles with slot, 2 slotted fixtures each (for 8 and 10 mm slot).
| Order No. | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Approx. weight kg |
|---|
| 03102-38038028 | 5 | 15 | 0,120 |

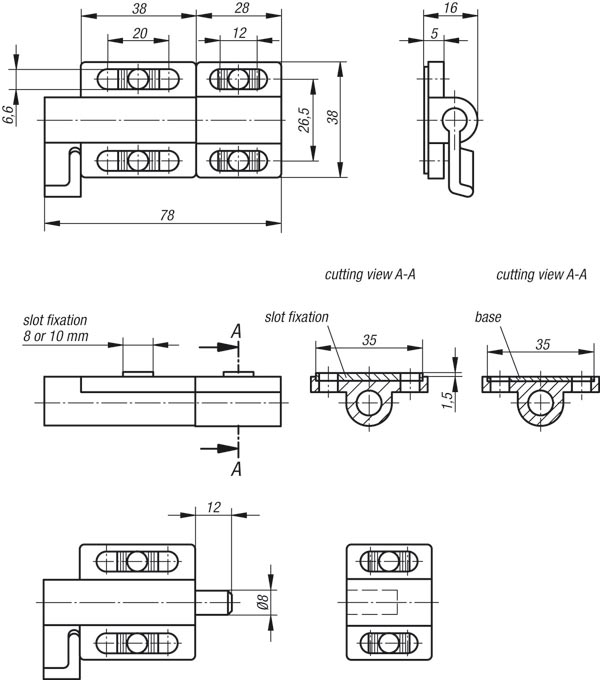

Konstruktion
