Haltestücke
Artikelnummer: 03099_2
Produktinfo
Notera
Bracing Parts provide assistance with assembly for locking bolts with grips and extend their area of application. They can also be used for locking bolts.

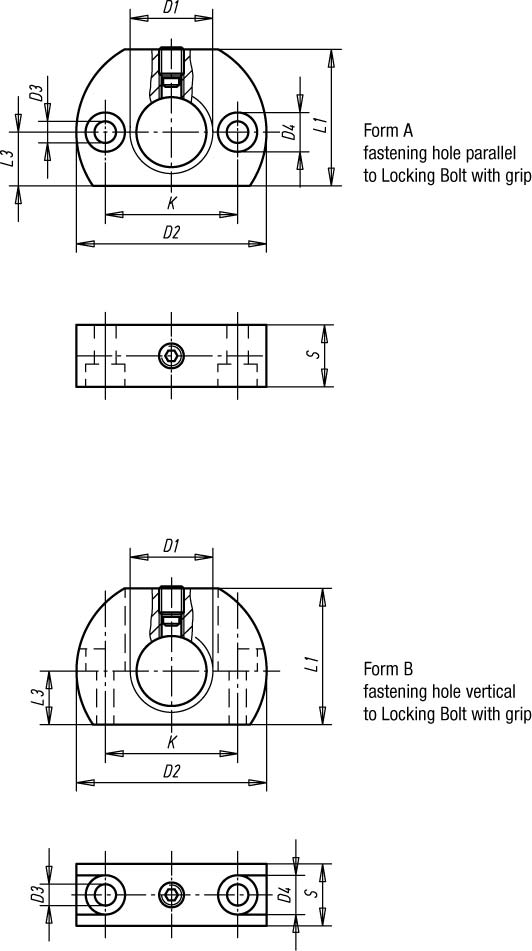

| Order No. | D2 | D3 | D4 | K | L1 | L3 | S | Form | D1 |
|---|
| 03099-112 | 36 | 5,5 | 10 | 24 | 25 | 10 | 12 | A | M12 |
| 03099-1121 | 36 | 5,5 | 10 | 24 | 25 | 10 | 12 | A | M12x1,5 |
| 03099-116 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | A | M16 |
| 03099-1161 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | A | M16x1,5 |
| 03099-120 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | A | M20 |
| 03099-1201 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | A | M20x1,5 |
| 03099-212 | 36 | 5,5 | 10 | 24 | 25 | 10 | 12 | B | M12 |
| 03099-2121 | 36 | 5,5 | 10 | 24 | 25 | 10 | 12 | B | M12x1,5 |
| 03099-216 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | B | M16 |
| 03099-2161 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | B | M16x1,5 |
| 03099-220 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | B | M20 |
| 03099-2201 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | B | M20x1,5 |
Konstruktion
