Arretierbolzen ohne Bund_6
Artikelnummer: 03098_1
Produktinfo
Material
- Steel version, locking pin hardened:
sleeve 1.0403 weldable,
locking pin quality class 5.8
- Stainless steel version, locking pin hardened:
sleeve 1.4301 weldable,
locking pin 1.4034
- Stainless steel version, locking pin not hardened:
sleeve 1.4301 weldable,
locking pin 1.4305
Key ring 1.4310, natural finish
Yta
- Steel version, locking pin hardened:
black oxide finish, locking pin ground
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground
Notera
Locking Bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been disengaged.
The key ring is also suitable for actuation of the locking bolt, for example automatically (programme-controlled) with the aid of a pneumatic cylinder or actuation by remote control with bowden cables.
In order to weld the locking bolts to another surface, we recommend inert gas-shielded welding with MIG welding equipment.

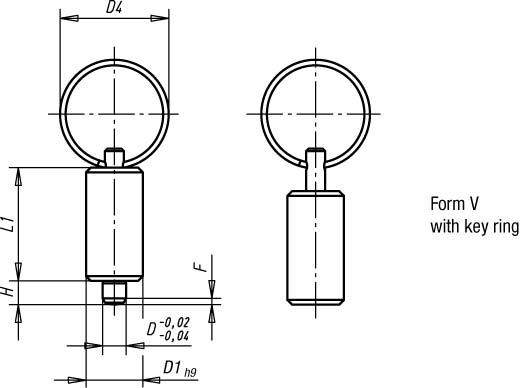

| Order No. | Form | Size | D | D1 | D4 | L1 | H | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N |
|---|
| 03098-4004 | V | 0 | 4 | 10 | 15 | 21 | 4 | 1 | 6 | 12 |
| 03098-4105 | V | 1 | 5 | 12 | 23 | 24 | 5 | 1,3 | 5 | 12 |
| 03098-4206 | V | 2 | 6 | 14 | 23 | 28 | 6 | 1,8 | 6 | 14 |
| 03098-4308 | V | 3 | 8 | 18 | 28 | 36 | 8 | 2,3 | 15 | 35 |
| 03098-4410 | V | 4 | 10 | 22 | 28 | 40 | 10 | 2,8 | 15 | 34 |
| Order No. | Form | Size | D | D1 | D4 | L1 | H | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N |
|---|
| 03098-04004 | V | 0 | 4 | 10 | 15 | 21 | 4 | 1 | 6 | 12 |
| 03098-04105 | V | 1 | 5 | 12 | 23 | 24 | 5 | 1,3 | 5 | 12 |
| 03098-04206 | V | 2 | 6 | 14 | 23 | 28 | 6 | 1,8 | 6 | 14 |
| 03098-04308 | V | 3 | 8 | 18 | 28 | 36 | 8 | 2,3 | 15 | 35 |
| 03098-04410 | V | 4 | 10 | 22 | 28 | 40 | 10 | 2,8 | 15 | 34 |
| Order No. | Form | Size | D | D1 | D4 | L1 | H | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N |
|---|
| 03098-14004 | V | 0 | 4 | 10 | 15 | 21 | 4 | 1 | 6 | 12 |
| 03098-14105 | V | 1 | 5 | 12 | 23 | 24 | 5 | 1,3 | 5 | 12 |
| 03098-14206 | V | 2 | 6 | 14 | 23 | 28 | 6 | 1,8 | 6 | 14 |
| 03098-14308 | V | 3 | 8 | 18 | 28 | 36 | 8 | 2,3 | 15 | 35 |
| 03098-14410 | V | 4 | 10 | 22 | 28 | 40 | 10 | 2,8 | 15 | 34 |
Konstruktion
