Doppel-Keilspanner mit Bearbeitungszugabe
Artikelnummer: 04523
Produktinfo
Material
Exterior part in aluminium profile,
taper in hardened steel
Yta
Exterior part anodized, taper black oxide finish
Notera

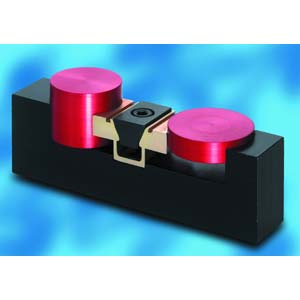

A Double Edge Clamp clamps two workpieces simultaneously. By means of appropriate countersinking workpieces can be clamped with form-fit and thus absolutely safely and free of torsion.
Due to its compact construction, space-saving multiple clamping is possible.

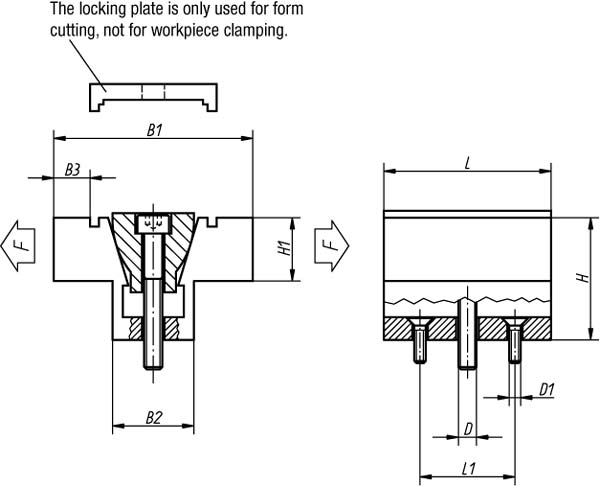

| Order No. | D | L | L1 | B1 min. - max. | B2 | B3 | F kN | Approx. weight kg | D1 | H | H1 | Tightening torque max. Nm |
|---|
| 04523-04 | M4 | 15,9 | 10,2 | 28,6 - 29,1 | 10,6 | 4,6 | 2,2 | 0,018 | M2 | 12,7 | 6,3 | 3,4 |
| 04523-06 | M6 | 23,9 | 15,9 | 38,1 - 39 | 16,1 | 6,6 | 6,7 | 0,056 | M4 | 19 | 9,5 | 14,3 |
| 04523-08 | M8 | 31,8 | 20,6 | 50,8 - 52 | 20,8 | 9,4 | 8,9 | 0,123 | M4 | 25,4 | 12,7 | 14,5 |
| 04523-12 | M12 | 47,6 | 30,5 | 76,2 - 78 | 30,9 | 14,8 | 15,6 | 0,420 | M5 | 38,1 | 19 | 38,4 |
| 04523-16 | M16 | 63,5 | 40 | 101,6 - 103,9 | 41,3 | 20,3 | 26,7 | 1,008 | M6 | 50,8 | 25,4 | 74,6 |
