Doppel-Keilspanner
Artikelnummer: 04522
Produktinfo
Material
Exterior part in aluminium profile,
taper in hardened steel
Yta
Exterior part anodized, taper black oxide finish
Notera

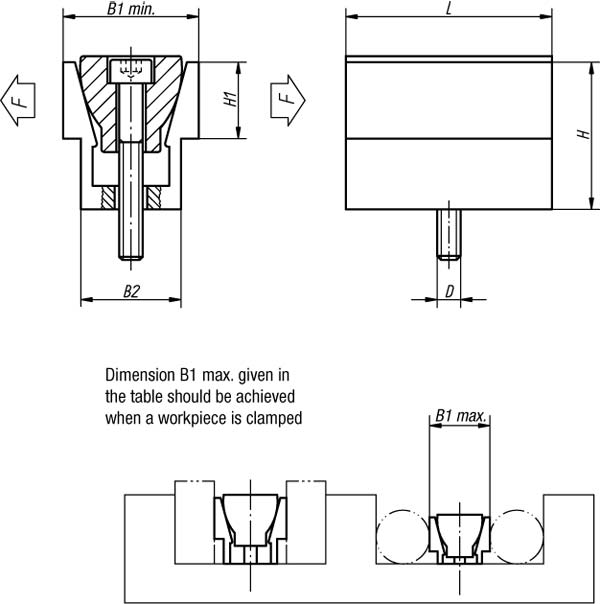

A Double Edge Clamp clamps two workpieces simultaneously. It is perfectly suited to clamp both round and rectangular pieces. Due to its compact construction, space-saving multiple clamping is possible.
| Order No. | D | L | B1 min. - max. | B2 | F kN | Approx. weight kg | Tightening torque max. Nm | H | H1 |
|---|
| 04522-04 | M4 | 15,9 | 12,3 - 13,1 | 10,4 | 2,2 | 0,012 | 3,4 | 14,5 | 5,6 |
| 04522-06 | M6 | 23,8 | 18,6 - 19,9 | 16,1 | 6,7 | 0,040 | 14,3 | 19 | 9,5 |
| 04522-08 | M8 | 31,7 | 24,8 - 26,6 | 20,8 | 8,9 | 0,090 | 14,5 | 25,9 | 12,7 |
| 04522-12 | M12 | 47,6 | 37,3 - 39,7 | 30,8 | 15,6 | 0,300 | 38,4 | 38,6 | 19 |
| 04522-16 | M16 | 63,5 | 49,7 - 52,8 | 41,2 | 26,7 | 0,710 | 74,6 | 51,5 | 25,4 |
