Arretierbolzen_3
Artikelnummer: 03092_1
Produktinfo
Material
- Steel version, locking pin hardened:
quality class 5.8
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305
locking pin 1.4034
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305
locking pin 1.4305
Key ring 1.4310, natural finish
Yta
- Steel version, locking pin hardened:
black oxide finish, locking pin ground
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground
Notera
Locking Bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been disengaged.The key ring is also suitable for actuation of the locking bolt, for example automatically (programme-controlled) with the aid of a pneumatic cylinder or actuation by remote control with bowden cables.

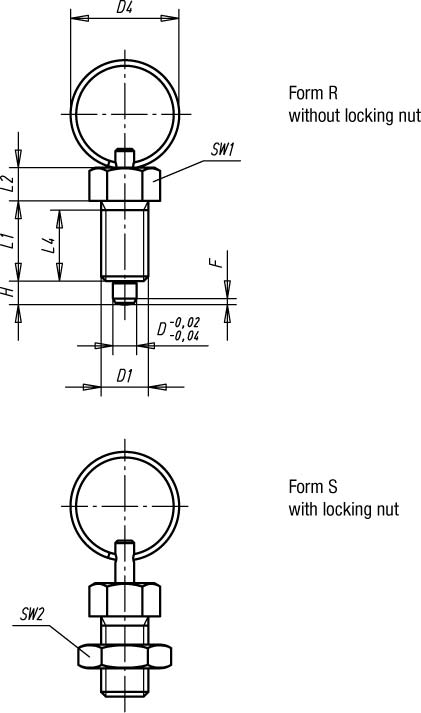

| Order No. | Size | D | D4 | L1 | L4 | SW1 | SW2 | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Form | D1 | L2 | H |
|---|
| 03092-3004 | 0 | 4 | 15 | 15 | 13 | 10 | - | 1 | 6 | 12 | R | M8x1 | 6 | 4 |
| 03092-3105 | 1 | 5 | 23 | 17 | 15 | 13 | - | 1,3 | 5 | 12 | R | M10x1 | 7 | 5 |
| 03092-3206 | 2 | 6 | 23 | 20 | 17 | 14 | - | 1,8 | 6 | 14 | R | M12x1,5 | 8 | 6 |
| 03092-3308 | 3 | 8 | 28 | 26 | 23 | 19 | - | 2,3 | 15 | 35 | R | M16x1,5 | 10 | 8 |
| 03092-3410 | 4 | 10 | 28 | 28 | 25 | 22 | - | 2,8 | 15 | 34 | R | M20x1,5 | 12 | 10 |
| 03092-4004 | 0 | 4 | 15 | 15 | 13 | 10 | 13 | 1 | 6 | 12 | S | M8x1 | 6 | 4 |
| 03092-4105 | 1 | 5 | 23 | 17 | 15 | 13 | 17 | 1,3 | 5 | 12 | S | M10x1 | 7 | 5 |
| 03092-4206 | 2 | 6 | 23 | 20 | 17 | 14 | 19 | 1,8 | 6 | 14 | S | M12x1,5 | 8 | 6 |
| 03092-4308 | 3 | 8 | 28 | 26 | 23 | 19 | 24 | 2,3 | 15 | 35 | S | M16x1,5 | 10 | 8 |
| 03092-4410 | 4 | 10 | 28 | 28 | 25 | 22 | 30 | 2,8 | 15 | 34 | S | M20x1,5 | 12 | 10 |
| Order No. | Size | D | D4 | L1 | L4 | SW1 | SW2 | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Form | D1 | L2 | H |
|---|
| 03092-03004 | 0 | 4 | 15 | 15 | 13 | 10 | - | 1 | 6 | 12 | R | M8x1 | 6 | 4 |
| 03092-03105 | 1 | 5 | 23 | 17 | 15 | 13 | - | 1,3 | 5 | 12 | R | M10x1 | 7 | 5 |
| 03092-03206 | 2 | 6 | 23 | 20 | 17 | 14 | - | 1,8 | 6 | 14 | R | M12x1,5 | 8 | 6 |
| 03092-03308 | 3 | 8 | 28 | 26 | 23 | 19 | - | 2,3 | 15 | 35 | R | M16x1,5 | 10 | 8 |
| 03092-03410 | 4 | 10 | 28 | 28 | 25 | 22 | - | 2,8 | 15 | 34 | R | M20x1,5 | 12 | 10 |
| 03092-04004 | 0 | 4 | 15 | 15 | 13 | 10 | 13 | 1 | 6 | 12 | S | M8x1 | 6 | 4 |
| 03092-04105 | 1 | 5 | 23 | 17 | 15 | 13 | 17 | 1,3 | 5 | 12 | S | M10x1 | 7 | 5 |
| 03092-04206 | 2 | 6 | 23 | 20 | 17 | 14 | 19 | 1,8 | 6 | 14 | S | M12x1,5 | 8 | 6 |
| 03092-04308 | 3 | 8 | 28 | 26 | 23 | 19 | 24 | 2,3 | 15 | 35 | S | M16x1,5 | 10 | 8 |
| 03092-04410 | 4 | 10 | 28 | 28 | 25 | 22 | 30 | 2,8 | 15 | 34 | S | M20x1,5 | 12 | 10 |
| Order No. | Size | D | D4 | L1 | L4 | SW1 | SW2 | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Form | D1 | L2 | H | Price_Nox |
|---|
| 03092-13004 | 0 | 4 | 15 | 15 | 13 | 10 | - | 1 | 6 | 12 | R | M8x1 | 6 | 4 | 8,79 |
| 03092-13105 | 1 | 5 | 23 | 17 | 15 | 13 | - | 1,3 | 5 | 12 | R | M10x1 | 7 | 5 | 8,39 |
| 03092-13206 | 2 | 6 | 23 | 20 | 17 | 14 | - | 1,8 | 6 | 14 | R | M12x1,5 | 8 | 6 | 9,89 |
| 03092-13308 | 3 | 8 | 28 | 26 | 23 | 19 | - | 2,3 | 15 | 35 | R | M16x1,5 | 10 | 8 | 13,11 |
| 03092-13410 | 4 | 10 | 28 | 28 | 25 | 22 | - | 2,8 | 15 | 34 | R | M20x1,5 | 12 | 10 | 22,41 |
| 03092-14004 | 0 | 4 | 15 | 15 | 13 | 10 | 13 | 1 | 6 | 12 | S | M8x1 | 6 | 4 | 9,72 |
| 03092-14105 | 1 | 5 | 23 | 17 | 15 | 13 | 17 | 1,3 | 5 | 12 | S | M10x1 | 7 | 5 | 9,26 |
| 03092-14206 | 2 | 6 | 23 | 20 | 17 | 14 | 19 | 1,8 | 6 | 14 | S | M12x1,5 | 8 | 6 | 10,88 |
| 03092-14308 | 3 | 8 | 28 | 26 | 23 | 19 | 24 | 2,3 | 15 | 35 | S | M16x1,5 | 10 | 8 | 14,52 |
| 03092-14410 | 4 | 10 | 28 | 28 | 25 | 22 | 30 | 2,8 | 15 | 34 | S | M20x1,5 | 12 | 10 | 23,99 |
