Arretierbolzen_2
Artikelnummer: 03092
Produktinfo
Material
- Steel version, locking pin hardened:
quality class 5.8
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305
locking pin 1.4034
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305
locking pin 1.4305
Yta
- Steel version, locking pin hardened:
black oxide finish, locking pin ground
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground
Notera
Locking Bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been disengaged. Special grips can be fitted on the projecting threaded pin.

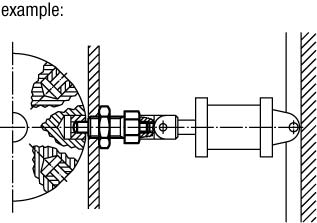

This pin is also suitable for actuation of the locking bolt, for example automatically (programme-controlled) with the aid of a pneumatic cylinder or actuation by remote control with bowden cables.

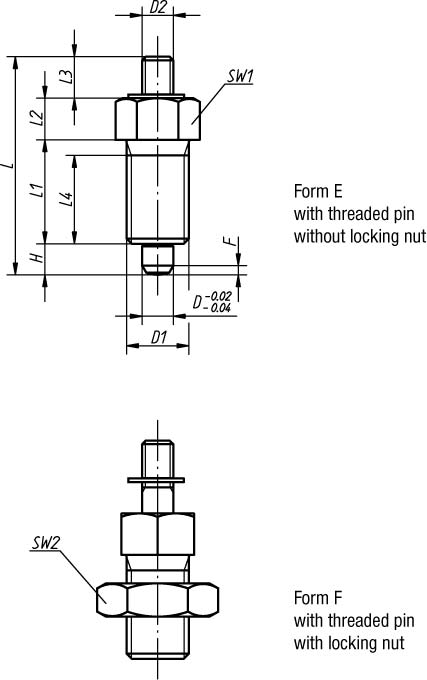

| Order No. | Form | D | D1 | D2 | L | L1 | L2 | L3 | L4 | H | SW1 | SW2 | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N |
|---|
| 03092-1903 | E | 3 | M6x0,75 | M2 | 24 | 12 | 5 | 3,5 | 10 | 3,5 | 8 | - | 0,8 | 4,5 | 9 |
| 03092-1004 | E | 4 | M8x1 | M3 | 32 | 15 | 6 | 7 | 13 | 4 | 10 | - | 1 | 6 | 12 |
| 03092-1105 | E | 5 | M10x1 | M4 | 37 | 17 | 7 | 8 | 15 | 5 | 13 | - | 1,3 | 5 | 12 |
| 03092-1206 | E | 6 | M12x1,5 | M6 | 42 | 20 | 8 | 8 | 17 | 6 | 14 | - | 1,8 | 6 | 14 |
| 03092-1308 | E | 8 | M16x1,5 | M8 | 56 | 26 | 10 | 12 | 23 | 8 | 19 | - | 2,3 | 15 | 35 |
| 03092-1410 | E | 10 | M20x1,5 | M8 | 62 | 28 | 12 | 12 | 25 | 10 | 22 | - | 2,8 | 15 | 34 |
| 03092-1412 | E | 12 | M20x1,5 | M8 | 66 | 28 | 14 | 12 | 25 | 12 | 22 | - | 2,8 | 15 | 39 |
| 03092-1516 | E | 16 | M24x2 | M10 | 80 | 32 | 18 | 14 | 28 | 16 | 27 | - | 3,2 | 20 | 46 |
| 03092-2903 | F | 3 | M6x0,75 | M2 | 24 | 12 | 5 | 3,5 | 10 | 3,5 | 8 | 10 | 0,8 | 4,5 | 9 |
| 03092-2004 | F | 4 | M8x1 | M3 | 32 | 15 | 6 | 7 | 13 | 4 | 10 | 13 | 1 | 6 | 12 |
| 03092-2105 | F | 5 | M10x1 | M4 | 37 | 17 | 7 | 8 | 15 | 5 | 13 | 17 | 1,3 | 5 | 12 |
| 03092-2206 | F | 6 | M12x1,5 | M6 | 42 | 20 | 8 | 8 | 17 | 6 | 14 | 19 | 1,8 | 6 | 14 |
| 03092-2308 | F | 8 | M16x1,5 | M8 | 56 | 26 | 10 | 12 | 23 | 8 | 19 | 24 | 2,3 | 15 | 35 |
| 03092-2410 | F | 10 | M20x1,5 | M8 | 62 | 28 | 12 | 12 | 25 | 10 | 22 | 30 | 2,8 | 15 | 34 |
| 03092-2412 | F | 12 | M20x1,5 | M8 | 66 | 28 | 14 | 12 | 25 | 12 | 22 | 30 | 2,8 | 15 | 39 |
| 03092-2516 | F | 16 | M24x2 | M10 | 80 | 32 | 18 | 14 | 28 | 16 | 27 | 36 | 3,2 | 20 | 46 |
| Order No. | Form | D | D1 | D2 | L | L1 | L2 | L3 | L4 | H | SW1 | SW2 | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N |
|---|
| 03092-01903 | E | 3 | M6x0,75 | M2 | 24 | 12 | 5 | 3,5 | 10 | 3,5 | 8 | - | 0,8 | 4,5 | 9 |
| 03092-01004 | E | 4 | M8x1 | M3 | 32 | 15 | 6 | 7 | 13 | 4 | 10 | - | 1 | 6 | 12 |
| 03092-01105 | E | 5 | M10x1 | M4 | 37 | 17 | 7 | 8 | 15 | 5 | 13 | - | 1,3 | 5 | 12 |
| 03092-01206 | E | 6 | M12x1,5 | M6 | 42 | 20 | 8 | 8 | 17 | 6 | 14 | - | 1,8 | 6 | 14 |
| 03092-01308 | E | 8 | M16x1,5 | M8 | 56 | 26 | 10 | 12 | 23 | 8 | 19 | - | 2,3 | 15 | 35 |
| 03092-01410 | E | 10 | M20x1,5 | M8 | 62 | 28 | 12 | 12 | 25 | 10 | 22 | - | 2,8 | 15 | 34 |
| 03092-01412 | E | 12 | M20x1,5 | M8 | 66 | 28 | 14 | 12 | 25 | 12 | 22 | - | 2,8 | 15 | 39 |
| 03092-01516 | E | 16 | M24x2 | M10 | 80 | 32 | 18 | 14 | 28 | 16 | 27 | - | 3,2 | 20 | 46 |
| 03092-02903 | F | 3 | M6x0,75 | M2 | 24 | 12 | 5 | 3,5 | 10 | 3,5 | 8 | 10 | 0,8 | 4,5 | 9 |
| 03092-02004 | F | 4 | M8x1 | M3 | 32 | 15 | 6 | 7 | 13 | 4 | 10 | 13 | 1 | 6 | 12 |
| 03092-02105 | F | 5 | M10x1 | M4 | 37 | 17 | 7 | 8 | 15 | 5 | 13 | 17 | 1,3 | 5 | 12 |
| 03092-02206 | F | 6 | M12x1,5 | M6 | 42 | 20 | 8 | 8 | 17 | 6 | 14 | 19 | 1,8 | 6 | 14 |
| 03092-02308 | F | 8 | M16x1,5 | M8 | 56 | 26 | 10 | 12 | 23 | 8 | 19 | 24 | 2,3 | 15 | 35 |
| 03092-02410 | F | 10 | M20x1,5 | M8 | 62 | 28 | 12 | 12 | 25 | 10 | 22 | 30 | 2,8 | 15 | 34 |
| 03092-02412 | F | 12 | M20x1,5 | M8 | 66 | 28 | 14 | 12 | 25 | 12 | 22 | 30 | 2,8 | 15 | 39 |
| 03092-02516 | F | 16 | M24x2 | M10 | 80 | 32 | 18 | 14 | 28 | 16 | 27 | 36 | 3,2 | 20 | 46 |
| Order No. | Form | D | D1 | D2 | L | L1 | L2 | L3 | L4 | H | SW1 | SW2 | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N |
|---|
| 03092-11903 | E | 3 | M6x0,75 | M2 | 24 | 12 | 5 | 3,5 | 10 | 3,5 | 8 | - | 0,8 | 4,5 | 9 |
| 03092-11004 | E | 4 | M8x1 | M3 | 32 | 15 | 6 | 7 | 13 | 4 | 10 | - | 1 | 6 | 12 |
| 03092-11105 | E | 5 | M10x1 | M4 | 37 | 17 | 7 | 8 | 15 | 5 | 13 | - | 1,3 | 5 | 12 |
| 03092-11206 | E | 6 | M12x1,5 | M6 | 42 | 20 | 8 | 8 | 17 | 6 | 14 | - | 1,8 | 6 | 14 |
| 03092-11308 | E | 8 | M16x1,5 | M8 | 56 | 26 | 10 | 12 | 23 | 8 | 19 | - | 2,3 | 15 | 35 |
| 03092-11410 | E | 10 | M20x1,5 | M8 | 62 | 28 | 12 | 12 | 25 | 10 | 22 | - | 2,8 | 15 | 34 |
| 03092-11412 | E | 12 | M20x1,5 | M8 | 66 | 28 | 14 | 12 | 25 | 12 | 22 | - | 2,8 | 15 | 39 |
| 03092-11516 | E | 16 | M24x2 | M10 | 80 | 32 | 18 | 14 | 28 | 16 | 27 | - | 3,2 | 20 | 46 |
| 03092-12903 | F | 3 | M6x0,75 | M2 | 24 | 12 | 5 | 3,5 | 10 | 3,5 | 8 | 10 | 0,8 | 4,5 | 9 |
| 03092-12004 | F | 4 | M8x1 | M3 | 32 | 15 | 6 | 7 | 13 | 4 | 10 | 13 | 1 | 6 | 12 |
| 03092-12105 | F | 5 | M10x1 | M4 | 37 | 17 | 7 | 8 | 15 | 5 | 13 | 17 | 1,3 | 5 | 12 |
| 03092-12206 | F | 6 | M12x1,5 | M6 | 42 | 20 | 8 | 8 | 17 | 6 | 14 | 19 | 1,8 | 6 | 14 |
| 03092-12308 | F | 8 | M16x1,5 | M8 | 56 | 26 | 10 | 12 | 23 | 8 | 19 | 24 | 2,3 | 15 | 35 |
| 03092-12410 | F | 10 | M20x1,5 | M8 | 62 | 28 | 12 | 12 | 25 | 10 | 22 | 30 | 2,8 | 15 | 34 |
| 03092-12412 | F | 12 | M20x1,5 | M8 | 66 | 28 | 14 | 12 | 25 | 12 | 22 | 30 | 2,8 | 15 | 39 |
| 03092-12516 | F | 16 | M24x2 | M10 | 80 | 32 | 18 | 14 | 28 | 16 | 27 | 36 | 3,2 | 20 | 46 |
