Kombi-Niederzugpratzen
Artikelnummer: 04521
Produktinfo
Material
Steel
Yta
Body heat-treated and black oxide finish, clamping disc case-hardened and brass-coated
Notera

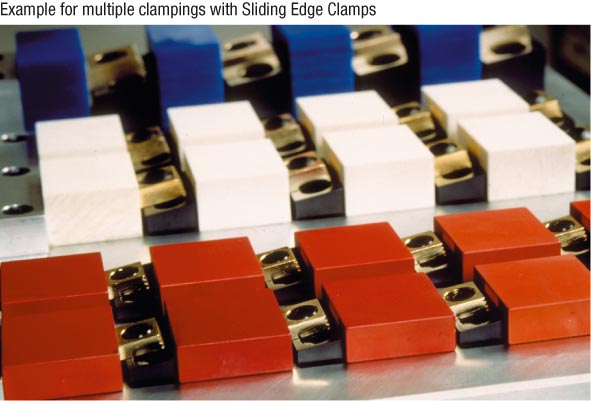

Sliding Edge Clamps allow for space-saving and economical clamping of multiple workpieces.
When clamping multiple workpieces the rear side of the body can be used as a stop.
Mounting preferably in slots with B +0.05 mm. The contact height of the clamping disc can be varied with the depth of the slot.

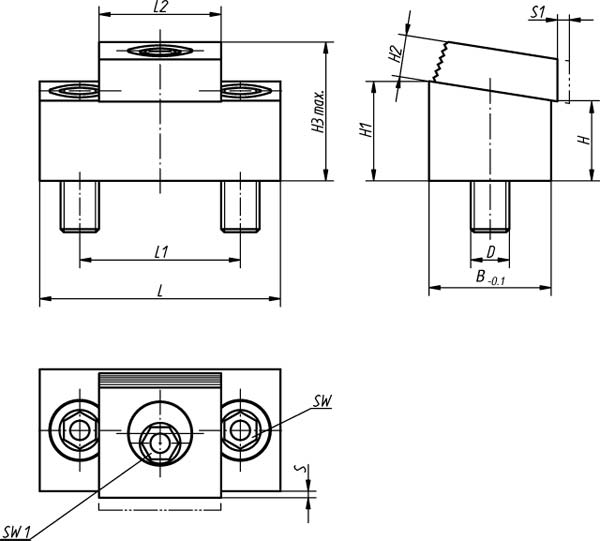

| Order No. | L | L1 | B | ToleranceB | H2 | H3 max. | S | D | S1 (Clamping travel) | SW | SW1 | Clamping force kN | Approx. weight kg | Tightening torque max. Nm | H | H1 | L2 |
|---|
| 04521-08 | 43,2 | 25,4 | 19 | -0,1 | 6,4 | 21,4 | 1,5 | M8 | 1,6 | 5 | 7 | 8,9 | 0,100 | 28 | 12,7 | 15,7 | 19 |
| 04521-10 | 54 | 33,5 | 25,4 | -0,1 | 9,7 | 24,5 | 1,8 | M10 | 2 | 7 | 8 | 17,8 | 0,178 | 88 | 11,4 | 15,4 | 25,4 |
| 04521-12 | 75 | 50,8 | 38,1 | -0,1 | 13 | 43 | 2,05 | M12 | 2,5 | 10 | 12 | 26,7 | 0,720 | 135 | 25,5 | 31,5 | 38 |
Konstruktion
