Arretierbolzen_1_1
Artikelnummer: 03091
Produktinfo
Material
Steel quality class 5.8
Yta
Blue chromated
Notera
Locking Bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged.

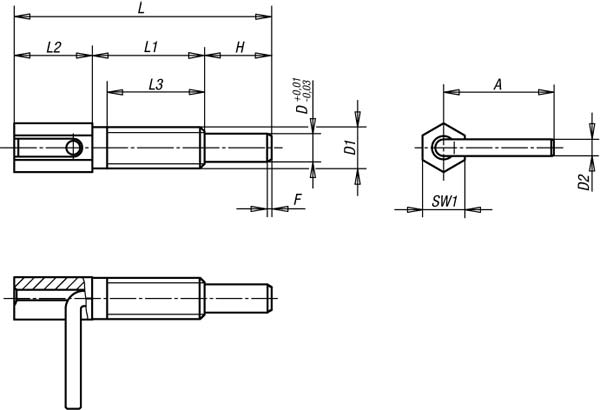

| Order No. | Size | D | D1 | D2 | L | L1 | L2 | L3 | H | A | SW1 | F x 30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Tightening torque max. Nm |
|---|
| 03091-1104 | 1 | 4 | M6 | 2,3 | 41,5 | 20 | 12 | 17 | 9,5 | 15,5 | 6 | 0,7 | 3 | 10 | 1,6 |
| 03091-1905 | 9 | 5 | M8 | 3 | 54 | 27 | 15 | 24 | 12 | 19,2 | 8 | 0,9 | 3,5 | 13,5 | 4,5 |
| 03091-1206 | 2 | 6 | M10 | 3,5 | 65 | 33,5 | 17,5 | 30 | 14 | 22,9 | 10 | 1,1 | 4 | 16 | 10 |
| 03091-1308 | 3 | 8 | M12 | 4,7 | 73 | 31,8 | 22,2 | 28 | 19 | 31,2 | 12 | 1,3 | 4 | 22 | 13 |
| 03091-1410 | 4 | 10 | M16 | 4,7 | 102,5 | 50,5 | 27 | 44,5 | 25 | 32,7 | 16 | 1,6 | 4 | 23 | 42 |
Konstruktion
