Raststücke
Artikelnummer: 03069
Produktinfo
Notera

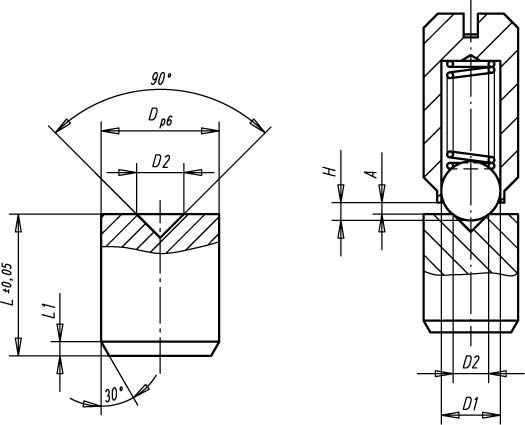

If abrasion-resistant and exact locking is necessary, locators can be used together with spring plungers, especially with strong spring force.
| Order No. | Suitable for Spring Plunger D | D | ToleranceD | D1 | D2 | H | L | ToleranceL | L1 | Packaging unit |
|---|
| 03069-04015 | - / M4 | 4 | p6 | see relevant product page for dimensions | 1,5 | see relevant product page for dimensions | 5 | ±0,05 | 0,5 | 1 |
| 03069-05020 | ø 4 / M5 | 5 | p6 | see relevant product page for dimensions | 2 | see relevant product page for dimensions | 6 | ±0,05 | 0,5 | 1 |
| 03069-06020 | ø 5 / M6 | 6 | p6 | see relevant product page for dimensions | 2 | see relevant product page for dimensions | 8 | ±0,05 | 0,7 | 1 |
| 03069-08030 | ø 6 / M8 | 8 | p6 | see relevant product page for dimensions | 3 | see relevant product page for dimensions | 10 | ±0,05 | 1 | 1 |
| 03069-10040 | ø 8 / M10 | 10 | p6 | see relevant product page for dimensions | 4 | see relevant product page for dimensions | 12 | ±0,05 | 1,2 | 1 |
| 03069-12060 | ø 10 / M12 | 12 | p6 | see relevant product page for dimensions | 6 | see relevant product page for dimensions | 14 | ±0,05 | 1,5 | 1 |
| 03069-16080 | ø 12 / M16 | 16 | p6 | see relevant product page for dimensions | 8 | see relevant product page for dimensions | 18 | ±0,05 | 2 | 1 |
