Federnde Druckstücke mit Kopf
Artikelnummer: 03060
Produktinfo
Material
Free cutting steel
Yta
Black oxide finish, pressure pin hardened
Notera
These spring plungers are chiefly used as ejectors and spring stops in machine construction.
| Order No. | ToleranceD1 | D2 | D3 | L1 | L3 | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Approx. weight g | Packaging unit | D1 | H | L2 |
|---|
| 03060-08 | -0,08 | 3,95 | 10 | 24 | 8 | 30 | 90 | 8 | 1 | 8 | 4,5 | 3,2 |
| 03060-10 | -0,08 | 5,95 | 13 | 30 | 10 | 42 | 110 | 14 | 1 | 10 | 5,5 | 4 |
| 03060-12 | -0,08 | 7,95 | 16 | 36 | 12 | 50 | 130 | 26 | 1 | 12 | 6,5 | 5 |

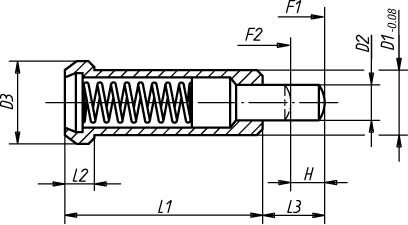

Konstruktion
