Federnde Druckstücke mit Endlagenabfrage
Artikelnummer: 03020_1
Produktinfo
Material
Sleeve, pressure pin and spring in steel,
inductive proximitiy switch
Yta
Black oxide finish, pressure pin hardened
Notera
An electrical control signal can be sent via the built-in end switch.
Voltage: U = 10 – 30 V DC
Electricity: I max. = 200 mA
Temperature range: -25 °C – +70 °C
Protection class: IP 67
| Order No. | Surface finish | D | L | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | D1 | H | H1 | Packaging unit | Switching contact from stroke H1 |
|---|
| 03020-5061 | normally closed | M6 | 27 | 7 | 20 | 2,7 | 3 | 2 | 1 | 1,2 - 1,6 |
| 03020-5081 | normally closed | M8 | 29 | 15 | 30 | 4 | 3 | 2 | 1 | 1,2 - 1,6 |
| 03020-5101 | normally closed | M10 | 36 | 26 | 44 | 4,5 | 4 | 3 | 1 | 2,2 - 2,6 |
| 03020-5062 | normally open | M6 | 27 | 7 | 20 | 2,7 | 3 | 2 | 1 | 1,2 - 1,6 |
| 03020-5082 | normally open | M8 | 29 | 15 | 30 | 4 | 3 | 2 | 1 | 1,2 - 1,6 |
| 03020-5102 | normally open | M10 | 36 | 26 | 44 | 4,5 | 4 | 3 | 1 | 2,2 - 2,6 |

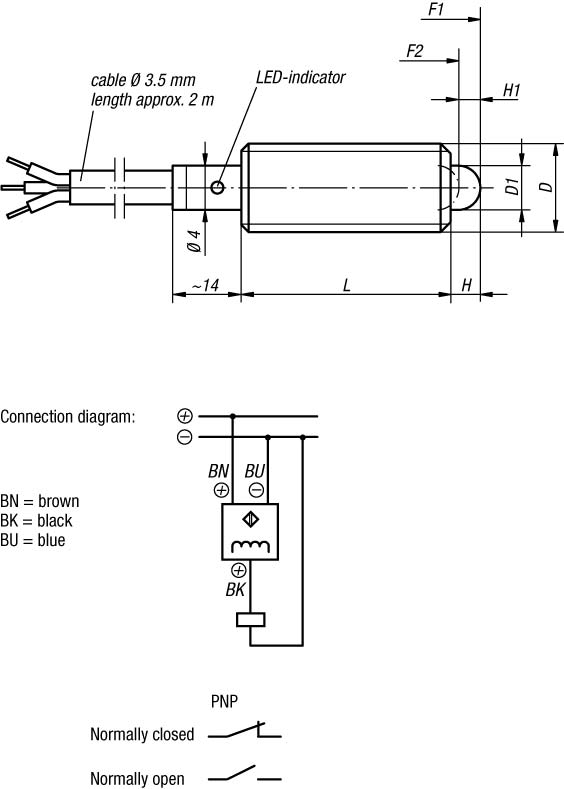

Konstruktion
