Anschlagelemente
Artikelnummer: 04445
Produktinfo
Material
Steel
Yta
Heat-treated, black oxide finish;
ground support surfaces and stops
Notera
Two stops used with one or two Adjustable Eccentric Type Edge Clamps can be used to make up a tailored cost-effective clamping system.

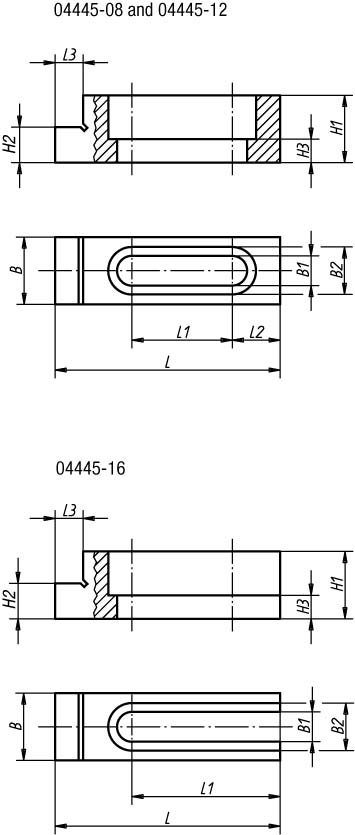

| Order No. | suitable fastening screw | L | L1 | L3 | B | B1 | B2 | H2 | ToleranceH2 | H3 | Oblong hole | Approx. weight kg | H1 | L2 |
|---|
| 04445-08 | M8 | 63,5 | 28,3 | 7,9 | 19 | 8,4 | 13,4 | 11,684 -0,013 | -0,013 | 6,6 | closed | 0,090 | 19 | 13,5 |
| 04445-12 | M12 | 95,2 | 42,7 | 7,9 | 28,5 | 13,4 | 19,8 | 12,192 -0,013 | -0,013 | 6,9 | closed | 0,280 | 22 | 12,7 |
| 04445-16 | M16 | 107 | 46,2 | 9,5 | 38 | 17 | 24,8 | 35,001 ±0,006 | ±0,006 | 21,3 | open | 1,000 | 50,7 | - |
