Pendelauflagen Neigungswinkel 12°
Artikelnummer: 02080
Produktinfo
Material
Body in tempered steel,
ball in ball-bearing steel 1.3505
Yta
Body heat-treated, ball hardened (50 - 55 HRC)
Notera
The toggle locators serve as stops, supports and pressure pads in the fixture construction. They can also be installed in existing clamping devices, e.g. "Arness" Clamping Device 04430.
Ball is protected against torsion.
| Order No. | D | T | Load capacity max. kN (static load only) | Approx. weight kg | Ball-Ø | Form | D1 | H | H1 |
|---|
| 02080-106 | M6 | 13 | 10 | 0,015 | 10 | C | 6,7 | 13 | 7 |
| 02080-108 | M8 | 13 | 10 | 0,020 | 10 | C | 6,7 | 13 | 8 |
| 02080-110 | M10 | 19 | 25 | 0,035 | 16 | C | 10 | 18 | 10 |
| 02080-112 | M12 | 19 | 25 | 0,045 | 16 | C | 10 | 18 | 12 |
| 02080-116 | M16 | 30 | 90 | 0,160 | 24 | C | 20 | 27 | 16 |
| 02080-120 | M20 | 30 | 90 | 0,180 | 24 | C | 20 | 27 | 20 |
| 02080-306 | M6 | 13 | 10 | 0,015 | 10 | F | 6,7 | 13 | 7 |
| 02080-308 | M8 | 13 | 10 | 0,020 | 10 | F | 6,7 | 13 | 8 |
| 02080-310 | M10 | 19 | 25 | 0,035 | 16 | F | 10 | 18 | 10 |
| 02080-312 | M12 | 19 | 25 | 0,045 | 16 | F | 10 | 18 | 12 |
| 02080-316 | M16 | 30 | 90 | 0,160 | 24 | F | 20 | 27 | 16 |
| 02080-320 | M20 | 30 | 90 | 0,180 | 24 | F | 20 | 27 | 20 |

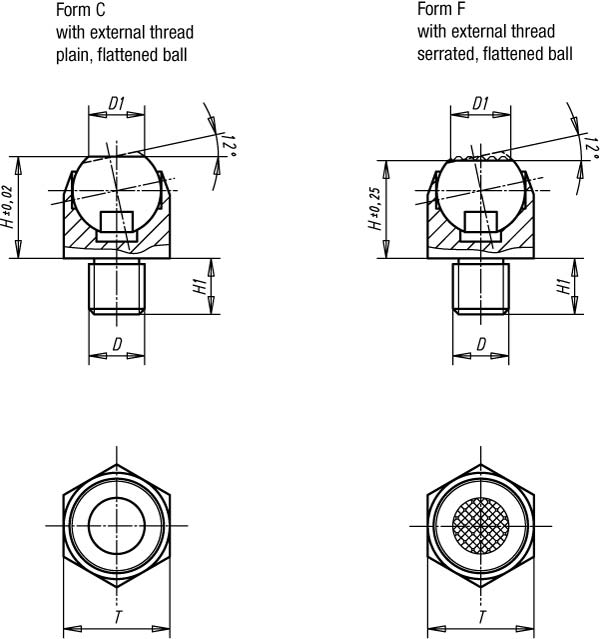

Konstruktion
