Multi-Exzenter-Spanneinheiten
Artikelnummer: 04444
Produktinfo
Material
Steel
Yta
Body heat-treated, black oxide finish, ground support surface; clamping disc case hardened and brass-coated
Notera
Two stops used with one or two Adjustable Eccentric Type Edge Clamps can be used to make up a tailored cost-effective clamping system.

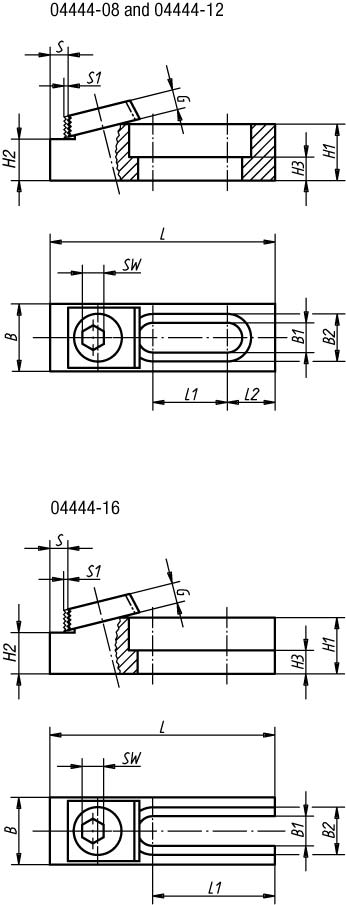

| Order No. | suitable fastening screw | L | L1 | B | B1 | B2 | H2 | ToleranceH2 | H3 | S | S1 | SW | Oblong hole | Clamping force kN | Approx. weight kg | Tightening torque max. Nm | H1 | L2 | G |
|---|
| 04444-08 | M8 | 63,5 | 21 | 19 | 8,4 | 13,4 | 11,684 -0,013 | -0,013 | 6,6 | 6,3 | 1,2 | 7 | closed | 8,9 | 0,120 | 28 | 15,9 | 13,5 | 5,3 |
| 04444-12 | M12 | 95,1 | 42,7 | 28,5 | 13 | 19,8 | 12,192 -0,013 | -0,013 | 6,9 | 7,1 | 2 | 8 | closed | 17,8 | 0,260 | 88 | 15,9 | 12,7 | 9,5 |
| 04444-16 | M16 | 107 | 46,3 | 38 | 17 | 24,8 | 35,001 ±0,006 | ±0,006 | 21 | 8,3 | 2,5 | 12 | open | 26,7 | 1,000 | 135 | 41 | - | 12,7 |
