Stützschrauben
Artikelnummer: 02037
Produktinfo
Material
Tempered steel, heat-treated
Yta
Black oxide finish
Notera
The rounded nose allows Support Bolts to be used as positioning elements for workpieces with holes too.
The model 02037-08016 has a hexagonal.

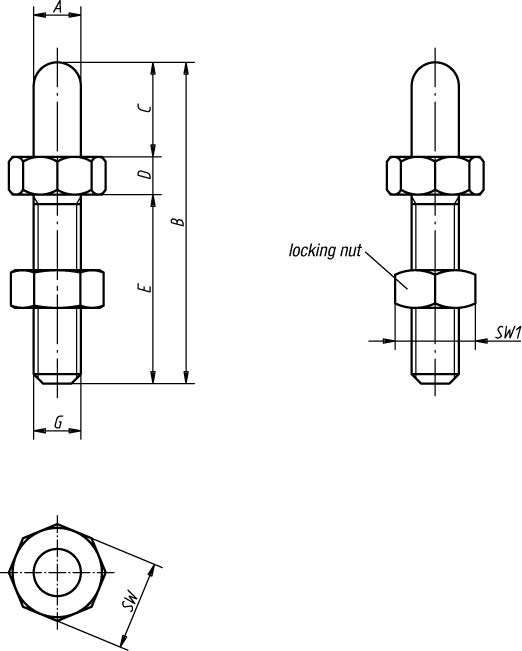

| Order No. | A | B | C | D | E | SW | SW1 | G | Approx. weight kg |
|---|
| 02037-06006 | 6 | 37 | 6 | 6 | 25 | 13 | 10 | M6 | 0,011 |
| 02037-06012 | 6 | 43 | 12 | 6 | 25 | 13 | 10 | M6 | 0,013 |
| 02037-08008 | 8 | 45 | 8 | 7 | 30 | 13 | 13 | M8 | 0,040 |
| 02037-08016 | 8 | 53 | 16 | 7 | 30 | 13 | 13 | M8 | 0,045 |
| 02037-10010 | 10 | 58 | 10 | 8 | 40 | 17 | 17 | M10 | 0,060 |
| 02037-10020 | 10 | 68 | 20 | 8 | 40 | 17 | 17 | M10 | 0,065 |
| 02037-12012 | 12 | 72 | 12 | 10 | 50 | 19 | 19 | M12 | 0,110 |
| 02037-12024 | 12 | 84 | 24 | 10 | 50 | 19 | 19 | M12 | 0,120 |
| 02037-16016 | 16 | 89 | 16 | 13 | 60 | 24 | 24 | M16 | 0,240 |
| 02037-16032 | 16 | 105 | 32 | 13 | 60 | 24 | 24 | M16 | 0,265 |
| 02037-20020 | 20 | 115 | 20 | 15 | 80 | 36 | 30 | M20 | 0,350 |
| 02037-20040 | 20 | 135 | 40 | 15 | 80 | 36 | 30 | M20 | 0,400 |
