Pendelauflagen verstellbar mit O-Ring

Artikelnummer: 02006

Produktinfo

Material
Body in tempered steel, ball in tool steel, Form K in delrin

Yta
Body heat-treated, ball hardened, black oxide finish, delrin ball in white

Notera
Toggle Locators are used to support and clamp unmachined and machined workpieces. In addition, they serve as stops, supports and thrust pads in fixture and tool shops. Ball is protected against torsion.

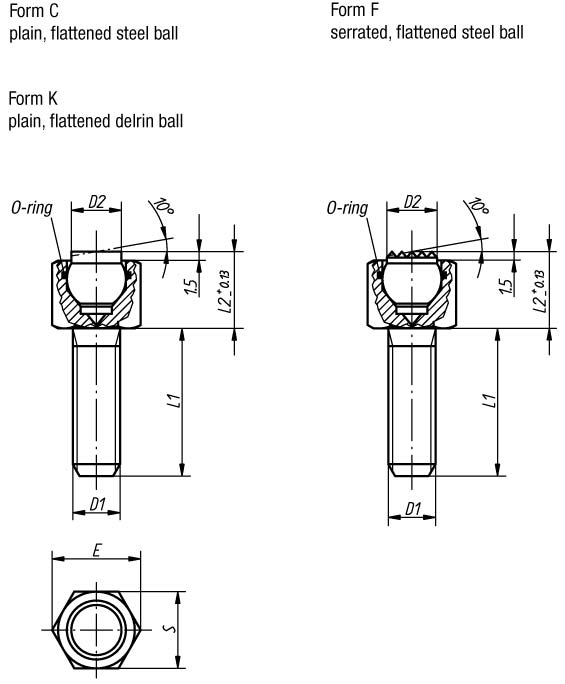

Order No.	D2	L1	E	S	Load capacity max. kN (static load only)	Approx. weight kg	Ball-Ø	Form	D1	L2
02006-106X012	6	12	11,5	10	9	0,007	7	C	M6	9,5
02006-106X025	6	25	11,5	10	9	0,010	7	C	M6	9,5
02006-106X040	6	40	11,5	10	9	0,012	7	C	M6	9,5
02006-108X012	8,5	12	15	13	15	0,016	10	C	M8	13
02006-108X025	8,5	25	15	13	15	0,021	10	C	M8	13
02006-108X040	8,5	40	15	13	15	0,026	10	C	M8	13

Order No.	D2	L1	E	S	Load capacity max. kN (static load only)	Approx. weight kg	Ball-Ø	Form	D1	L2
02006-306X012	6	12	11,5	10	9	0,007	7	F	M6	9,5
02006-306X025	6	25	11,5	10	9	0,010	7	F	M6	9,5
02006-306X040	6	40	11,5	10	9	0,012	7	F	M6	9,5
02006-308X012	8,5	12	15	13	15	0,016	10	F	M8	13
02006-308X025	8,5	25	15	13	15	0,021	10	F	M8	13
02006-308X040	8,5	40	15	13	15	0,025	10	F	M8	13

Order No.	D2	L1	E	S	Load capacity max. kN (static load only)	Approx. weight kg	Ball-Ø	Form	D1	L2
02006-706X012	6	12	11,5	10	2	0,006	7	K	M6	9,5
02006-706X025	6	25	11,5	10	2	0,009	7	K	M6	9,5
02006-706X040	6	40	11,5	10	2	0,011	7	K	M6	9,5
02006-708X012	8,5	12	15	13	4	0,012	10	K	M8	13
02006-708X025	8,5	25	15	13	4	0,017	10	K	M8	13
02006-708X040	8,5	40	15	13	4	0,022	10	K	M8	13

Konstruktion
