Pendelauflagen verstellbar
Artikelnummer: 02005
Produktinfo
Material
Steel
Yta
Housing heat-treated and manganese phosphate treated;
ball hardened, natural finish;
nut with black oxide finish
Notera
Ball is protected against torsion.

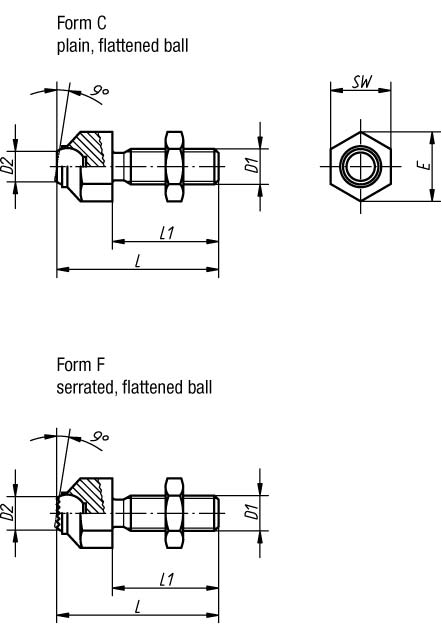

| Order No. | D2 | L | L1 | E | SW | Load capacity max. kN (static load only) | Approx. weight kg | Ball-Ø | Form | D1 |
|---|
| 02005-108 | 5,8 | 36,6 | 25 | 14,5 | 13 | 8 | 0,025 | 8,5 | C | M8 |
| 02005-110 | 8,6 | 45,7 | 30 | 19 | 17 | 8 | 0,055 | 12 | C | M10 |
| 02005-112 | 8,6 | 50,7 | 35 | 19 | 17 | 15 | 0,055 | 12 | C | M12 |
| 02005-116 | 10,5 | 60,7 | 40 | 27 | 24 | 25 | 0,115 | 16 | C | M16 |
| 02005-120 | 20 | 77,3 | 50 | 33 | 30 | 90 | 0,230 | 25 | C | M20 |
| 02005-308 | 5,8 | 36,6 | 25 | 14,5 | 13 | 8 | 0,025 | 8,5 | F | M8 |
| 02005-310 | 8,6 | 45,7 | 30 | 19 | 17 | 8 | 0,055 | 12 | F | M10 |
| 02005-312 | 8,6 | 50,7 | 35 | 19 | 17 | 15 | 0,055 | 12 | F | M12 |
| 02005-316 | 10,5 | 60,7 | 40 | 27 | 24 | 25 | 0,115 | 16 | F | M16 |
| 02005-320 | 20 | 77,3 | 50 | 33 | 30 | 90 | 0,230 | 25 | F | M20 |
Konstruktion
