Pendelauflagen selbsttätig rückschwenkend
Artikelnummer: 02004
Produktinfo
Material
Tempered steel
Yta
Hardened and black oxide finish
Notera

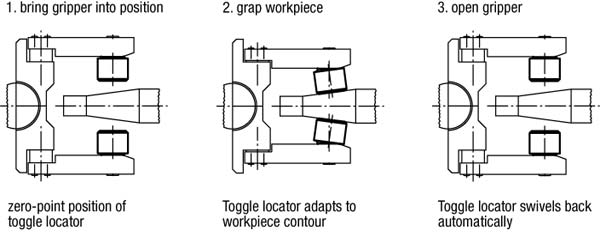

Toggle Locators are used to support and clamp unmachined and machined workpieces.
In addition, they serve as stops, supports and thrust pads in fixture and tool shops.

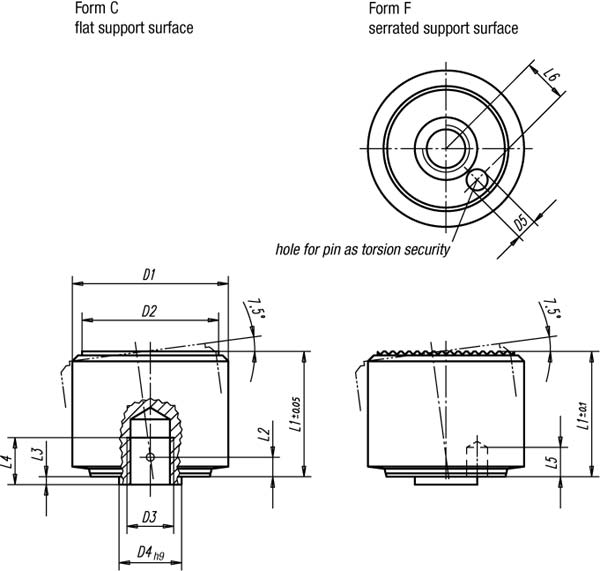

| Order No. | D2 | D3 | D4 | D5 | L1 | L3 | L4 | L5 | L6 | Load capacity max. kN (static load only) | Approx. weight kg | Form | D1 | L2 |
|---|
| 02004-105 | 15 | M5 | 7 | 1,8 | 14 | 0,8 | 5 | 3 | 4,6 | 30 | 0,022 | C | 18 | 2,1 |
| 02004-106 | 18 | M6 | 8 | 2,8 | 16,5 | 1 | 6 | 4 | 5,6 | 50 | 0,040 | C | 22 | 2,5 |
| 02004-108 | 23 | M8 | 11 | 3,3 | 21,5 | 1,3 | 8 | 5 | 7,5 | 90 | 0,082 | C | 28 | 3,4 |
| 02004-110 | 29 | M10 | 13 | 4,4 | 27 | 1,6 | 10 | 6 | 9,2 | 140 | 0,153 | C | 34 | 4,2 |
| 02004-112 | 35 | M12 | 16 | 5,4 | 32 | 2 | 12 | 8 | 11,3 | 220 | 0,253 | C | 40 | 5 |
| 02004-305 | 15 | M5 | 7 | 1,8 | 14 | 0,8 | 5 | 3 | 4,6 | 30 | 0,022 | F | 18 | 2,1 |
| 02004-306 | 18 | M6 | 8 | 2,8 | 16,5 | 1 | 6 | 4 | 5,6 | 50 | 0,040 | F | 22 | 2,5 |
| 02004-308 | 23 | M8 | 11 | 3,3 | 21,5 | 1,3 | 8 | 5 | 7,5 | 90 | 0,082 | F | 28 | 3,4 |
| 02004-310 | 29 | M10 | 13 | 4,4 | 27 | 1,6 | 10 | 6 | 9,2 | 140 | 0,153 | F | 34 | 4,2 |
| 02004-312 | 35 | M12 | 16 | 5,4 | 32 | 2 | 12 | 8 | 11,3 | 220 | 0,253 | F | 40 | 5 |
