Pendelauflagen mit O-Ring
Artikelnummer: 02002
Produktinfo
Material
Body in tempered steel,
ball in tool steel, Form K in delrin
Yta
Body heat-treated, ball hardened, black oxide finish, delrin ball in white
Notera
Toggle Locators are used to support and clamp unmachined and machined workpieces. In addition, they serve as stops, supports and thrust pads in fixture and tool shops.
Ball is protected against torsion.
| Order No. | D2 | D3 | L | L1 | Load capacity max. kN (static load only) | Approx. weight kg | Ball-Ø | Form | D1 |
|---|
| 02002-104X012 | 6 | M4 | 12 | 4,5 | 12 | 0,006 | 7 | C | 10 |
| 02002-104X025 | 6 | M4 | 25 | 12 | 12 | 0,013 | 7 | C | 10 |
| 02002-105X016 | 8,5 | M5 | 16 | 5 | 20 | 0,015 | 10 | C | 13 |
| 02002-105X025 | 8,5 | M5 | 25 | 12 | 20 | 0,023 | 10 | C | 13 |
| Order No. | D2 | D3 | L | L1 | Load capacity max. kN (static load only) | Approx. weight kg | Ball-Ø | Form | D1 |
|---|
| 02002-304X012 | 6 | M4 | 12 | 4,5 | 12 | 0,006 | 7 | F | 10 |
| 02002-304X025 | 6 | M4 | 25 | 12 | 12 | 0,013 | 7 | F | 10 |
| 02002-305X016 | 8,5 | M5 | 16 | 5 | 20 | 0,014 | 10 | F | 13 |
| 02002-305X025 | 8,5 | M5 | 25 | 12 | 20 | 0,022 | 10 | F | 13 |
| Order No. | D2 | D3 | L | L1 | Load capacity max. kN (static load only) | Approx. weight kg | Ball-Ø | Form | D1 |
|---|
| 02002-704X012 | 6 | M4 | 12 | 4,5 | 2 | 0,005 | 7 | K | 10 |
| 02002-704X025 | 6 | M4 | 25 | 12 | 2 | 0,012 | 7 | K | 10 |
| 02002-705X016 | 8,5 | M5 | 16 | 5 | 4 | 0,011 | 10 | K | 13 |
| 02002-705X025 | 8,5 | M5 | 25 | 12 | 4 | 0,019 | 10 | K | 13 |

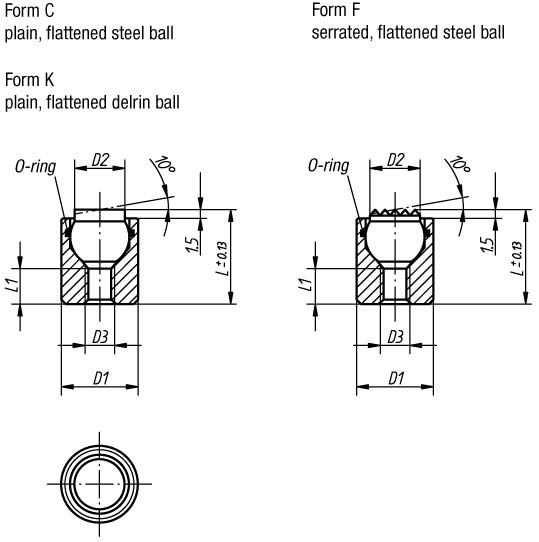

Konstruktion
