Verstellbare Spanneisen gerade, mit Schrauben

Artikelnummer: 04192

Material
Tempered steel, screws heat-treated class 8.8

Yta
Clamp painted; screws black oxide finish

Notera
"F" is dependent on the depth of slot according to DIN 650.

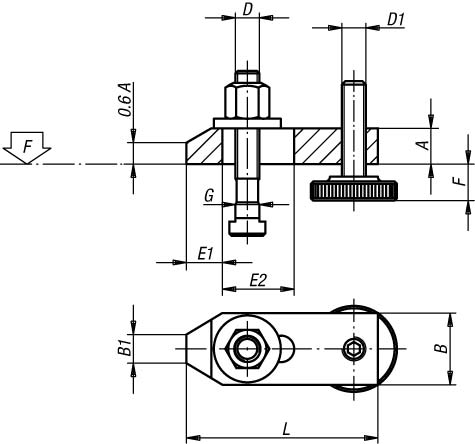

Order No.	L	A	B	B1	E1	E2	G for T-slot	D	Approx. weight kg	F kN	F	D1
04192-1010	80	15	30	12	15	30	10	M10x80	0,340	13,9	8-32	M10
04192-1212	100	20	40	14	21	40	12	M12x100	0,700	20,2	10-40	M12
04192-1214	100	20	40	14	21	40	14	M12x100	0,720	20,2	10-38	M12
04192-1616	125	25	50	18	26	45	16	M16x125	1,400	37,8	13-49	M16
04192-1618	125	25	50	18	26	45	18	M16x125	1,420	37,8	13-46	M16
04192-2020	160	30	60	22	30	60	20	M20x160	2,750	58,8	16-65	M20
04192-2022	160	30	60	22	30	60	22	M20x160	2,770	58,8	16-65	M20
